| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BERRY |
| Model Number: | PM4100 |
| Minimum Order Quantity: | 1SET |
| Price: | Negotiable |
| Packaging Details: | 47mm*47mm*38mm |
| Delivery Time: | 5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000sets/week |
| Product Name: | Patient Monitor Module | Brand Name: | Berry |
|---|---|---|---|
| Application: | DIY Project | Multi-parameter: | Spo2, Heart Rate, ECG, NIBP, Temperature And Respiration |
| Highlight: | Spo2 Patient Monitor Module,Respiration Patient Monitor Module,Temperature Patient Monitor Module |
||
Temperature And Respiration Patient Monitor Module

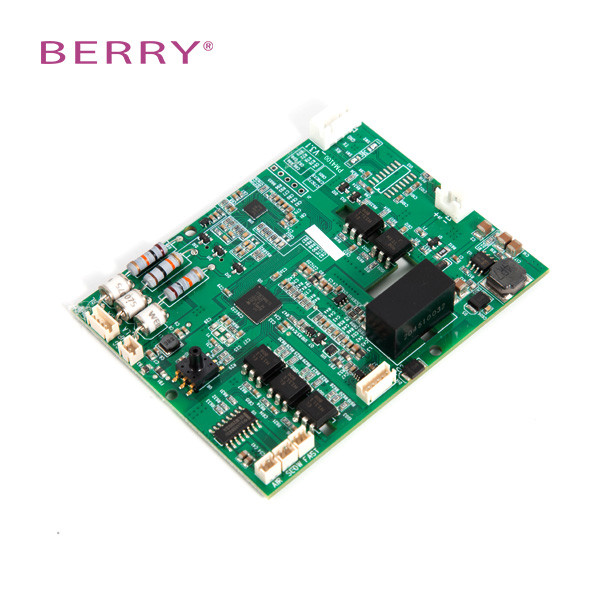

PM4100 multi-parameter spo2, heart rate, ECG, NIBP, temperature and respiration Patient Monitor Module
Introduction
PM4100 multi-parameter monitoring module can be used to monitor spo2, heart rate, ECG, NIBP, temperature and respiration and it can also connect with computers and other devices through COM(RS232 OR TTL)carry out data exchange and corresponding analysis ,including ECG, NIBP,Spo2,Resp,Temp and PR.
| Name: | Patient monitor Module |
| Brand Name: | Berry |
| Application | DIY Project |
| Packing: | One piece in a bag |
| Warranty: | One year |
Features
1. connect io with PC and smart phone thru COM(RS232 or TTL)
2. Multi-parameter: Blood pressure, Tempreture, Pulse rate, Spo2, ECG,Resp.
3. With the whole set of accessories: Spo2 sensor, ECG cable, NIBP Cuff, NIBP Tube, Tempreture probe, power source Line and Carrying case.
4. ECG 1 channels, 3 leads.
Specifications
Module supports the monitoring function of the four parameters (SPO2,Heart rate,ECG, Blood pressure, Breathing, Temperature)
1. 3-lead ECG, level 4 programmable gain, level 3 filtering mode (diagnose mode, diagnose mode, operation mode) heart rate range: 30 – 300BPM.
2. Impedance respiration, level 4 programmable gain, Breathing rate range:0 - 100BPM 3.Temperature measurement range:20 – 50℃, measuring accuracy:±0.2℃.
4. Blood oxygen range: 35% - 100%, measuring accuracy: 2% (80% -100%),3% (70% - 79%)
5. Pulse rate range:25-250BPM, measuring accuracy :1BPM
6. measuring accuracy: larger values in 1% and ±2BPM.
7. Step-wise gassing method is adopted to measure blood pressure.
Systolic blood pressure range: 60 -250 mmHg
Diastolic blood pressure range: 30 -180mmHg
