| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | BERRY |
| Certification: | CE |
| Model Number: | YS2000A |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiation |
| Delivery Time: | 15 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1000/day |
| Type: | Module | Name: | Oem Module Factory In China |
|---|---|---|---|
| Package: | Standard | Communication: | USB |
| Warranty: | 1 Year | Weight: | Weight: 20g |
| Power Supply Voltage: | DC From 3.6 V To 6.0 V | Working Temperature: | -20℃~ 60℃ |
| Window Size: | Size: 50*40*10mm | Spo2 Detection Scope:: | 35%-100% |
| Accuracy:: | ±2% 80%-100%±3% 70%-79% | Mass Production:: | About 15 Days (2000pieces) |
| OEM:: | About 25 Days | ||
| Highlight: | DC 3.6V Patient Monitor Module,Anesthesia medical equipment parts,CCU Patient Monitor Module |
||

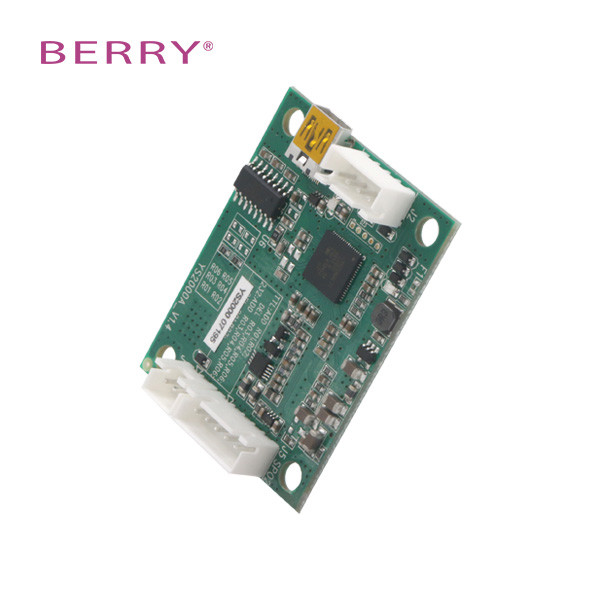

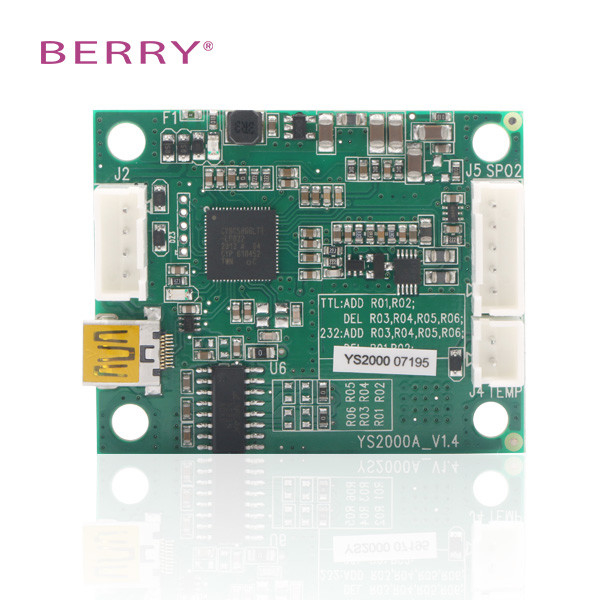

CCU And Anesthesia Operation Appliance Patient Monitor Module
Product features:
2. Pressure measurement range: -50~+300mmHg, width:d.c.~12.5Hz
3. Safety Type: CF Type; adopt high pressure isolationcomponents, reach 1500VAC,middle isolation area gap 8mm
4. Small size, low power consumption, high reliable performance
| Channels | Dual |
| Sensitivity | 5uV/V/ mmHg,deviation ±2% |
| Input,output impedance | 300Ω~3000Ω |
| Static pressure measurement range | -50~+300mmHg(max 350 mmHg) |
| Static pressure measurement deviation | ±1mmHg or±1%, which is bigger(don't include transducer) ±4mmHg or±4%, which is bigger(include transducer) |
| Dynamic pressure measurement range | -50~+300mmHg |
| Dynamic pressure measurement deviation | ±4mmHg or±4%, which is bigger |
| Frequency response | d.c.~15Hz |
| Pressure measurement range ART PA/LAP/RAP/LAP/ICP |
0~300 mmHg -50~120 mmHg |
| Resolution | 1 mmHg |
| Invasive pressure zero calibration | 10/12 bits DAC zero calibration Range:-300~+75mmHg Each time after connect transducer or each 4 hours after using,need zero calibration |
Support PCBA modules customization, including various functional, such as blood oxygen, pulse, body temperature, ECG, blood pressure, etc. The modules can connect and communicate via USB, serial port, Bluetooth, etc. The communication protocol is fully compatible with the BCI communication protocol.
Ring Pulse Meter:BM2000G Ring Pulse meter is an important and common device to check oxygen saturation (SpO2) and pulse rate.
| ►Detection scope: 35%-100% ►Rage:25-250BPM |
| ►Accuracy: ±2% 80%-100%±3% 70%-79% ►Accuracy:±2BPM |
| ►Rage:25-250BPM ►Resolution: 1BPM |
Environment
►Temperature working: 0-45℃
►Storage: -20-55℃
►Humidity working: 30-95%
►Storage: 10-100%
►Working voltage: D.C 3-5V, Input Current:<40mA
►Size: 50*40*10mm
►Weight: 20g
Industrial automation is an important prerequisite for starting Industry 4.0, BERRY as the industry leader,is keeping pace with the trend of the times.we have been implementing automation on our core technology and became the creator of advanced manufacture technology in the industry.
Shanghai Berry Electronic Tech Co., Ltd. is located in Shanghai Caohejing High-tech Park, a beautiful low-carbon and environmentally friendly city. We have been devoted to the R&D, manufacturing and sales of medical electronic instruments in the field of monitoring since 2003.
Our Bio-Medical technology has reached the domestic advanced level. Important breakthroughs have been made in non-invasive blood pressure calculation methods, blood oxygen saturation detection, and multi-parameter monitoring systems. After years of development, we have established good cooperative relations with customers worldwide, with annual sales reaching tens of millions dollars.
BERRY always provides customers with high-quality, cost-effective products. It is important for us to maintain good quality.
In 2009, we obtained the production license and product registration certificate that issued by Shanghai.
ln 2014, we passed the EN ISO 13485 quality system certification and CE0123 certification by TÜV SÜD. And we got the 510K for the wrist and handheld pulse oximeter
ln 2015, we got ANVISA, INMETRO Approved.
In 2016, we got FDA510K approved for fingertip pulse oximeter.
In 2018, we got CE0123 approved for Patient Monitor and new watch oximeter
In 2019, we established Shenzhen factory.
In 2022-now, our business growing up rapidly, and have more cooperation partners.
