| Place of Origin: | China |
|---|---|
| Brand Name: | BERRY |
| Certification: | CE0123,ISO13485 |
| Model Number: | PM6100B |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiation |
| Packaging Details: | 145(H)*85(W)*37(D)MM |
| Delivery Time: | 5-8days |
| Payment Terms: | D/A, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000/Month |
| Material:: | Plastic | Quality Certification:: | Ce |
|---|---|---|---|
| Parameters: | SpO2, PR, ECG,NIBP,Heart Rate,Temperature,Resprition | Instrument Classification:: | Class II |
| Application:: | Adult, Children And Neonate | Battery Type:: | Lithium Battery |
| Power Source:: | Electric | Product Name: | Vital Signs Portable Patient Monitor |
| Highlight: | Home Multi Parameter Patient Monitor,Heart Rate patient vitals monitor,househould Multi Parameter Patient Monitor |
||
Features:
Performance Specifications:
| Display | 7”color TFT Rolling and refreshing waveform display Resolution: 640X480 Multi display selectable including: Large-font display Trend coexist display OxyCRG dynamic view display. |
| Trace | 9 waveforms(7 ECG, 1 SPO2 and 1 RESP) Sweep speed:12.5mm/s,25mm/s,50mm/s |
| Indicator | Power/battery indicator light QRS beep and alarm sound |
| Battery | Rechargeable lead acid cell, 12v/4AH Max.24 hour for charging, 4 hours for continue working |
| Trend | Parameter graphic and tabular trends: 5s/piece,8 hours; 1min/piece,168 hours(24hour×7days) 5min/piece,1000 hours. |
| Storage | NIBP: 1000 groups Alarm: 200 groups Full disclosure waveforms: 3600S SD card external storage |
| Alarm | User-adjustable High, Medium and Low limits 3-level Audible and visual alarm |
| Networking | Connected to central monitoring system TCP/IP netting platform |
| Recorder | Build-in, thermal array Plethysmogram caveform:2 channels Record mode: manual, on alarm, time-defined Recording width: 50mm Printing speed: 50mm/s |
| Recording type | Frozen waveform record NIBP recall record Trend table record Alarm record Fixed -time record |

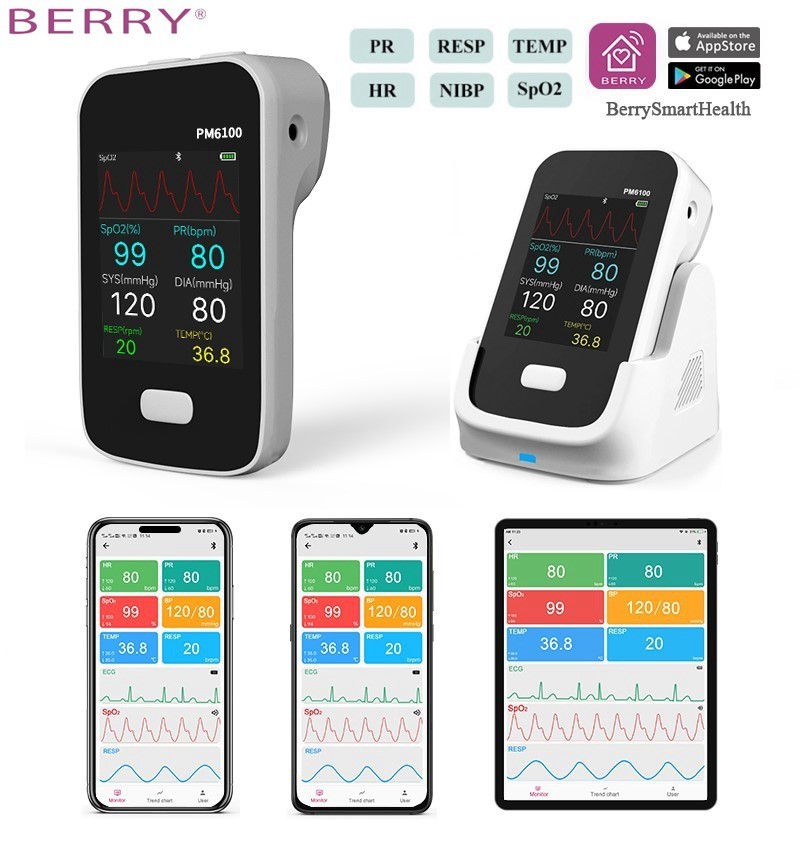

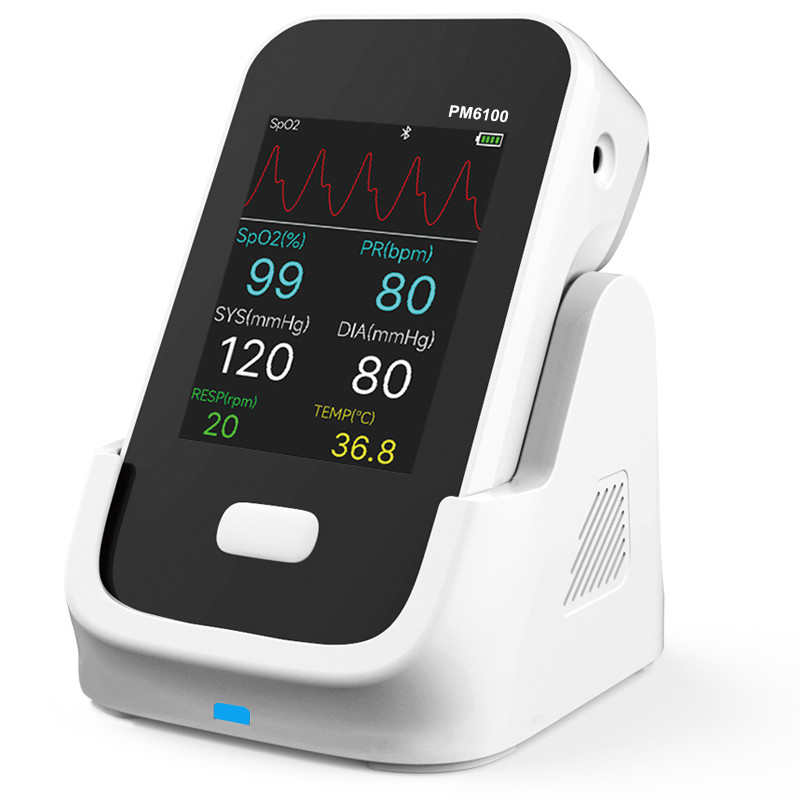

This monitor integrates the functions of parameter measurement,waveform monitoring, etc.Its color TFT liquid crystal display is able to show patient parameters and waveform clearly. The monitor also features compact size,lightweight,easy-to-carry handle and built-in battery,which make it portable in clinic,ward,even at home.
Abundant accessories |
1. SpO2 Sensor
|
Physiological signals |
NIBP (non-invasive blood pressure)
|
Display: 2.4 ’TFT Screen
Battery: 3.7V lithium battery
Spo2: Measurement range: 35~100%
PR: Measurement range: 25~250bpm
Dimensions: 145(H)*85(W)*37(D)MM
NIBP: Systolic blood pressure 60～230mmHg
Diastolic blood pressure: 40～130mmHg.
Industrial automation is an important prerequisite for starting Industry 4.0, BERRY as the industry leader,is keeping pace with the trend of the times.we have been implementing automation on our core technology and became the creator of advanced manufacture technology in the industry.
Shanghai Berry Electronic Tech Co., Ltd. is located in Shanghai Caohejing High-tech Park, a beautiful low-carbon and environmentally friendly city. We have been devoted to the R&D, manufacturing and sales of medical electronic instruments in the field of monitoring since 2003.
Our Bio-Medical technology has reached the domestic advanced level. Important breakthroughs have been made in non-invasive blood pressure calculation methods, blood oxygen saturation detection, and multi-parameter monitoring systems. After years of development, we have established good cooperative relations with customers worldwide, with annual sales reaching tens of millions dollars.
BERRY always provides customers with high-quality, cost-effective products. It is important for us to maintain good quality.
In 2009, we obtained the production license and product registration certificate that issued by Shanghai.
ln 2014, we passed the EN ISO 13485 quality system certification and CE0123 certification by TÜV SÜD. And we got the 510K for the wrist and handheld pulse oximeter
ln 2015, we got ANVISA, INMETRO Approved.
In 2016, we got FDA510K approved for fingertip pulse oximeter.
In 2018, we got CE0123 approved for Patient Monitor and new watch oximeter
In 2019, we established Shenzhen factory.
In 2022-now, our business growing up rapidly, and have more cooperation partners.
