| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BERRY |
| Model Number: | ECG007 ECG/RESP/TEMP Module |
| Minimum Order Quantity: | 100PCS |
| Price: | Price negotiable |
| Packaging Details: | 47*47*38cm |
| Delivery Time: | 15days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000psc/week |
| Type: | Patient Monitor,ECG007 ECG/RESP/TEMP Module | Application: | ICU,Operating Room,optionICU,Blood Analysis System Pathological Analysis Equipment,emergency |
|---|---|---|---|
| Instrument Classification: | Class II | Warranty: | 1 Year |
| Product Name: | Patient Monitor,Factory Price Handheld Multi-parameter Portable Patient Monitor | Function: | ECG,Monitoring,TEMP,Record |
| Name: | ECG007 ECG/RESP/TEMP Module | Size: | 100*80*25mm |
| Parameters: | ECG | Weight: | 60g |
| Optional: | ECG Module; | Working Voltage: | D.C.5v |
| Product Type: | ICU Multi-parameter Patient Monitor,Medical Monitor | ||
| Highlight: | TEMP patient monitor parts,ECG Patient monitor Module,RESP patient monitor parts |
||

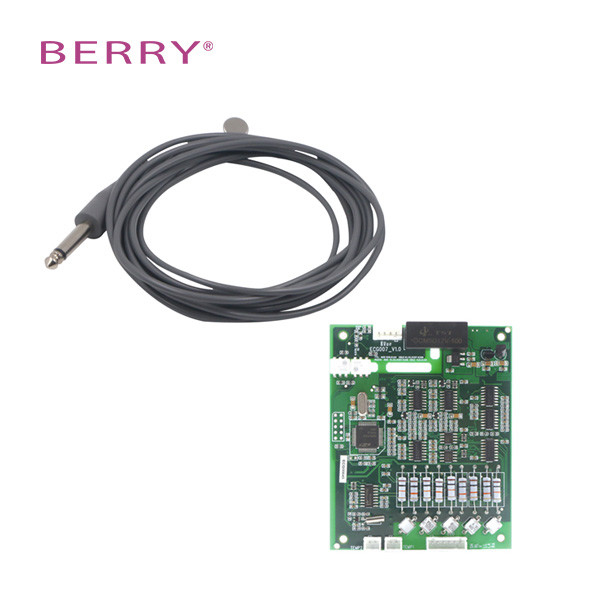

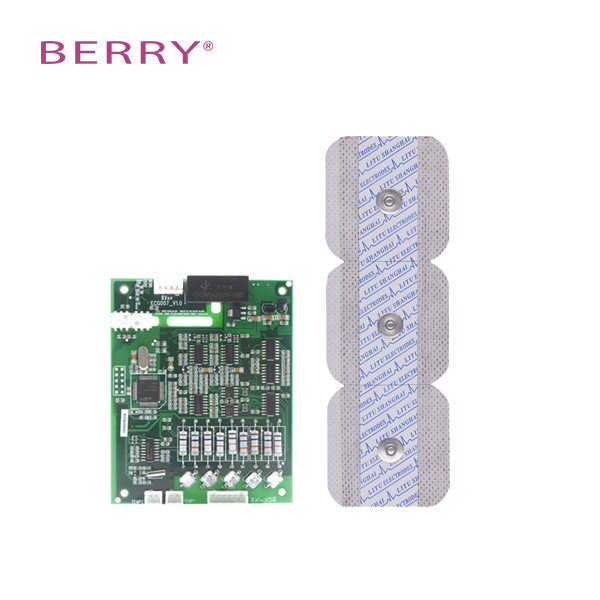

Customized MODULES ECG/RESP/TEMP 007 Oximeter Patient Monitor Module
Introduction
Item No.: ECG007
OEM07 ECG/RESP/TEMP Module
|
Name: |
Patient monitor Module |
|
Brand Name: |
Berry |
|
Application |
DIY Project |
|
Packing: |
One piece in a bag |
|
Warranty: |
One year |
Features
• The product is easy to use and easy to operate.
• Small size, light weight, easy to carry.
• The product has low power consumption, and the equipped two AA batteries can work continuously for at least 14 hours.
• When the battery voltage is too low, which may affect normal use, a low-voltage warning indicator will appear on the LCD display.
Feature
► Small volume,flexible installment mode,high reliable and accurate test.
► Excellent reliability and clinical monitoring fuction.
► It has implemented the monitor of 7 channel ECG, 1channel RESP and 2channels temp on the same time.
► In accordance with function safety design of CE requirements.
► In accordance with all the ecg/temp monitoring work,
► Suitable for adult,pediatric and neonate.
► Single power 5V work,low power consumption design.
Specification
►ECG Full lead: I,II,III ,aVL, aVR, aVF, and V1,V2,V3,V4,V5,V6
►Gain: 5mm/mV,10mm/mV,20mm/mV and 40mm/mV
►Scanning speed: Changeable with three grades 12.5mm/s,25mm/s and 50mm/s
►Band width: 0.05Hz-100Hz(3dB)
►Heart rate: Scope: 1times/minute to 300 times/minutes
►Accuracy: ±1 time/minute
►Resp Chest impedance method or concentration of carbon dioxide at end of respriation
►Range: 0 time/minute -100 times/minute
►Accuracy: ±2 time/minute-> 60 times/minute(including baby)
►Detection precision of respiration rate: ±1 time/minute
►Detection scope of carbon oxygen at end of respiration 3mmHg-75mmHg; 0.4%vol- 9..9% vol
►Temp Single/double path
►Type: Vascular/surface temperature
►Scope: 20-50℃
►Accuracy: ±0.2℃
►Working voltage: D.C.5v
►Size: 100*80*25mm
►Weight: 60g
►Delivery time Mass production: about 15 days (2000pieces)
►OEM: about 25 days
