| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | BERRY |
| Model Number: | YS2000A |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiation |
| Delivery Time: | 15 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1000/day |
| Type: | Module | Name: | Oem Module Factory In China |
|---|---|---|---|
| Package: | Standard | Communication: | USB |
| Warranty: | 1 Year | Weight: | Weight: 20g |
| Power Supply Voltage: | DC From 3.6 V To 6.0 V | Working Temperature: | -20℃~ 60℃ |
| Window Size: | Size: 50*40*10mm | Spo2 Detection Scope:: | 35%-100% |
| Accuracy:: | ±2% 80%-100%±3% 70%-79% | Mass Production:: | About 15 Days (2000pieces) |
| OEM:: | About 25 Days | ||
| Highlight: | SPO2 OEM Module,Oximeter Monitor Module,OEM Module Board 50x40x10mm |
||
and accurate oxygen saturation and HR.
- Using improved digital signal processing technology, effectively control the body movement and low perfusion measurement.
- Can provide the best test sensitivity and stability to meets ICU, CCU and anesthesia operation appliance.
- Comparing with many clinical trials of blood gas analyzer to ensure its accuracy.
- In accordance with function safety design of CE requirements.
- Suitable for adult, pediatric and neonate.
- Single power 3.0V-5.0V work, low consumption.
- Display volume plethysmographic wave and the pulse intensity.
- A simple communication protocol or TTL connection, easy integration(the default output is 232 level)
-Fully compatible with BCI communication protocol(except temp).
Specification
| Display model | OLED LCD screen |
| Spo2 Measurement range | 35-100% |
| Spo2 Measurement Accuracy | ±2%(80%-100%);±3%(70%-79%) |
| PR Measurement range | 25-250bpm |
| PR Accuracy | ±2%bpm |
| Product size | 58(H)*34(W)*30(D)mm |
| Product weight | 50g(include 2 AAA batteries) |
| Operation temperature | +5-+40℃ |
| Storage temperature | 10%-90% |
| Atmospheric Pressure | 860hPa - 1060hPa |

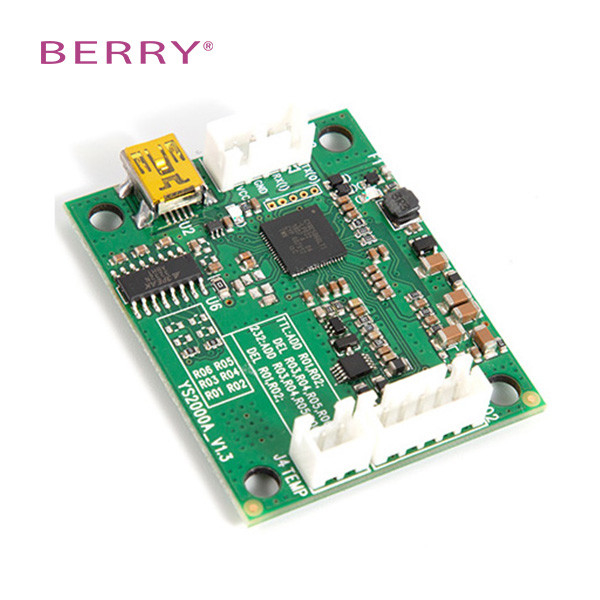

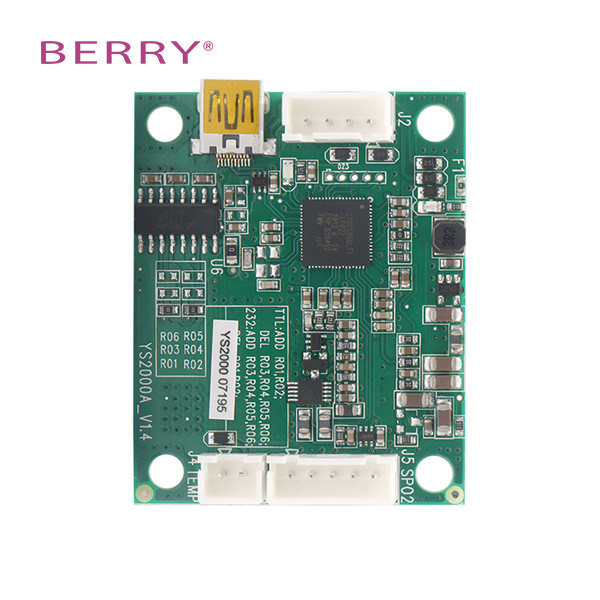

Pictures for Reference
Main Features
1. Compact size(40*50*8mm),easy installation,high reliability and accuracy
2. Enhanced signal processing to reduce the effect of random artifacts associated with motion and low perfusion
3. Applicable to adult,pediatric and neonatal patients
4. Powered by single 5V,low power consumption
5.Graph includes plethysmogram,pulse strength bargraph and PR digits
6. Converting between RS 232 and TTL level, or USB
7. Enable all the values displayed in the evaluation software on personal computer
Functions
1.Parameters:Spo2%,Pulse rate,temperature
2.One channel plethysmogram
3.Sensor status detection
