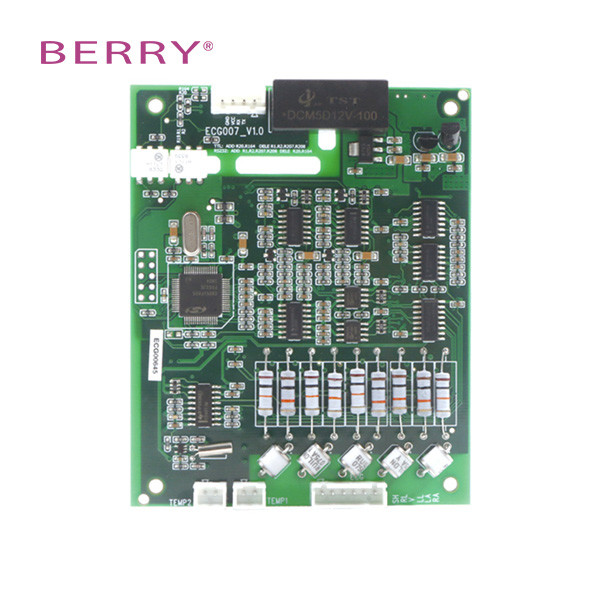

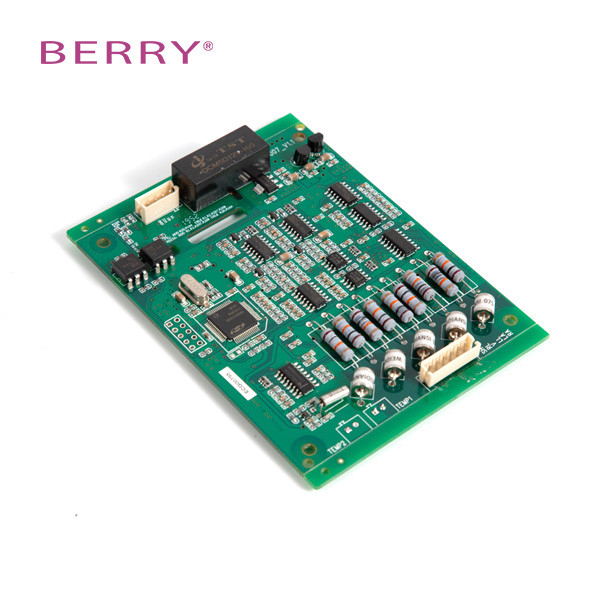

Name: Pulse Heart ECG Monitoring Sensor Module OEM ECG Measurement
Brand: BERRY
SKU: ECG007
Rating: 4.8 (104 reviews)

Pulse Heart ECG Monitoring Sensor Module OEM ECG Measurement

Basic Information

Place of Origin:	Shanghai
Brand Name:	BERRY
Model Number:	ECG007

Minimum Order Quantity:	100PCS
Price:	Negotiation
Packaging Details:	1008025mm
Delivery Time:	15 DAYS
Payment Terms:	T/T

Get Best Price Contact Now

Detail Information

Type:	ECG007	Name:	ECG/RESP/TEMP Module
Package:	Standard	ECG Full Lead:	I,II,III ,aVL, AVR, AVF, And V1,V2,V3,V4,V5,V6
Warranty:	1 Year	Weight:	60g
Work Current:	<100mA	Power Supply Voltage:	DC From 3.6 V To 6.0 V
Working Temperature:	Scope: 20-50℃	Size:	1008025mm
Gain:	5mm/mV,10mm/mV,20mm/mV And 40mm/mV	Scanning Speed::	Changeable With Three Grades 12.5mm/s,25mm/s And 50mm/s
Elivery Time Mass Production:	About 15 Days (2000pieces)	OEM:	About 25 Days
Highlight:	Monitoring Sensor Module OEM , Pulse Heart Module ECG007 , ECG Monitoring Sensor Module

Product Description

OEM Module ECG007 Hot selling Ecg module ecg measurement pulse heart ecg monitoring sensor module

Product Descriptio

Specification

Feature
► Small volume,flexible installment mode,high reliable and accurate test.

► Excellent reliability and clinical monitoring fuction.

► It has implemented the monitor of 7 channel ECG, 1channel RESP and2channels temp on the same time.

► In accordance with function safety design of CE requirements.

► In accordance with all the ecg/temp monitoring work,

► Suitable for adult,pediatric and neonate.

► Single power 5V work,low power consumption design.

item	value
Place of Origin	China
	Shanghai
Brand Name	BERRY
Model Number	ECG007
Power Source	Electricity
Warranty	1 Year
After-sale Service	Online technical support
Power Supply Mode	Removable Battery
Material	Metal, Plastic
Shelf Life	1years
Quality Certification	ce
Instrument classification	Class II
Safety standard	None
Product name	Pulse Oximeter
Display	LED Display
Type	Fingertip
Function	Monitoring Spo2
